Amplifier Parallel Configuration

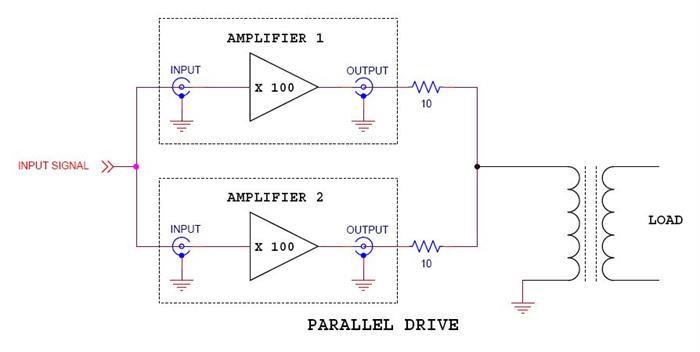

If you have a transformer that can handle the voltage and not saturate at lower frequencies, but need more power, you can drive it with two power amplifiers in the Parallel Drive Configuration shown below.
